ASS-5 Aluminum Anode 1.25" x 3" x 12"
- SKU:
- AlumAnodeASS5
- MPN:
- 547789
- Availability:
- Usually Ships in 5 -10 days
- Weight:
- 5.00 LBS
- Shipping:
- Calculated at Checkout
No Free Shipping
Description

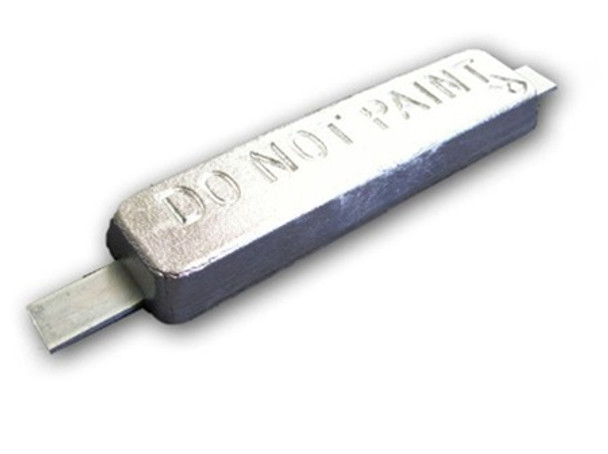

The ASS-5 Aluminum Anode contains a single steel mounting strap measuring .188" x 1.25" x 16". It may be welded on as is or you may drill holes into the strap for bolt on applications. The anode weighs approximately 5 lbs and measures 1.25" x 3" x 12".
ELEMENTS
Zn % 4.23 %
Fe % 0.072%
Cu % 0.0037%
In % 0.016%
Si % 0.092%
Others Ea 0.02% Max
Al % Balance
